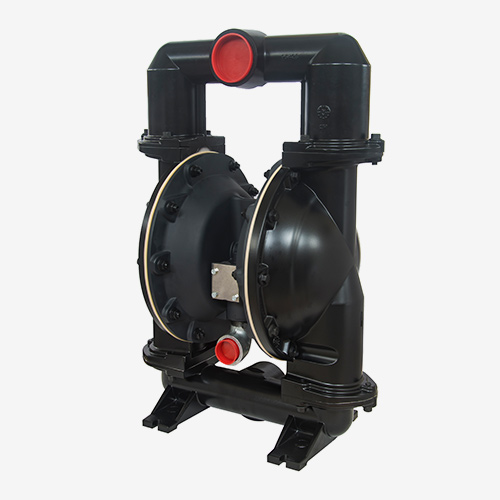

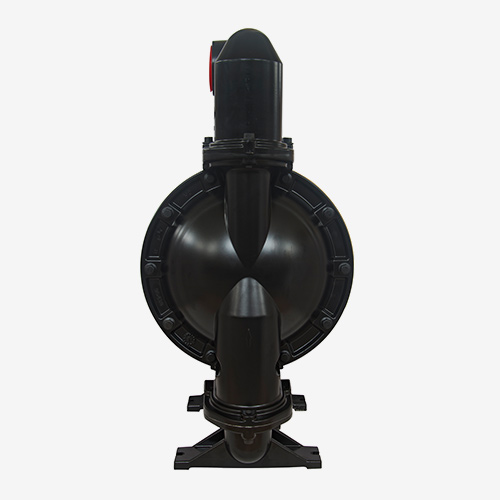

GA30 3" Metallic (Aluminum & Cast Iron) Diaphragm Pump
Ratio:1:1
Maximum Flow gpm (lpm):237 (897)
Displacement per cycle gal (l):2.65 (10.03)
Air Inlet (Female):3/4-14 NPTF-2
Fluid Inlet/Outlet:

3-8 NPTF-1; Rp 3（3-11 BSP Parallel）

Max. operating pressure psi (bar):120-psi (8.3-bar)
Suspended solids max. dia in (mm):3/8-in. (9.5-mm)
Weight (kg):Aluminum: 49.8 / Stainless Steel: 100.8 / Cast iron: 96.6
Maximum dry suction lift ft (m):ft (m) 27.2 (8.3)
Muffler:Included
View or Download BrochureOnline Inquiry
Description
A Series 3" metallic diaphragm pumps achieve flow rates of up to 237 GPM (897 LPM)and offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recirculation and batching in Ceramic, Paint, Oil & Gas, Mining, Construction,Chemical and Petrochemical markets.


GA30 3" Aluminum & Cast Iron Diaphragm Pump

Accessories

  • A637434 Air Section Service Kit

  • A637433-XX Fluid Section Service Kit

Pump Casing Materials

  • Aluminum

  • Cast Iron

Diaphragm Materials

  • PTFE w/ Santoprene backer

  • Hytrel

  • Santoprene

  • Nitrile
