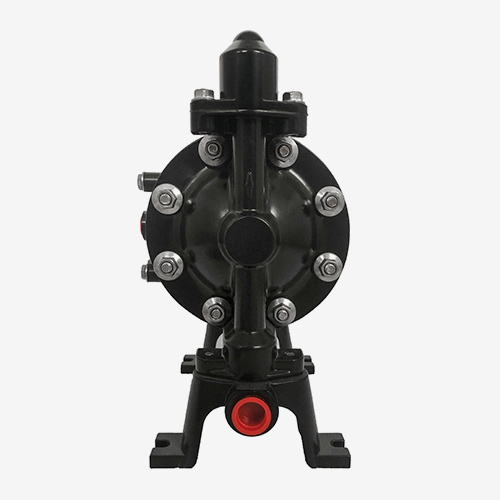

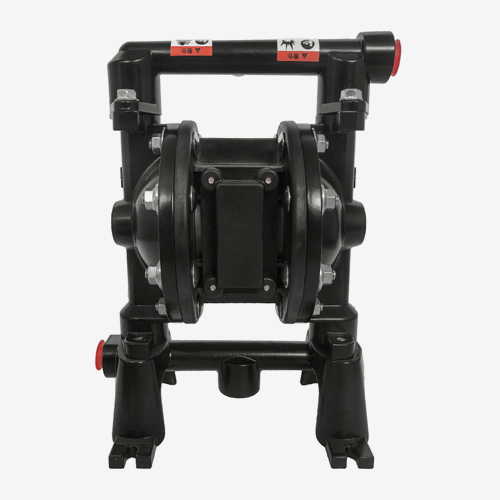

GA05 1/2'' Metallic (Aluminum) Diaphragm Pump
| Ratio: | 1:1 |
| Maximum Flow gpm (lpm): | 13.0 (49.2) |
| Displacement per cycle gal (l): | .04 (.15) |
| Air Inlet (Female): | 1/4 - 18 P.T.F.SAE Short; 1/4 - 18 N.P.T.F-1 |
| Fluid Inlet/Outlet: | 1/2 - 14 N.P.T.F.- 1; Rp 1/2（1/2 - 14 BSP, parallel） |
| Max. operating pressure psi (bar): | 100-psi (6.9-bar) |
| Suspended solids max. dia in (mm): | 3/32-in. (2.4-mm) |
| Weight (kg): | Aluminum 3.8 / Stainless Steel 6.6 |
| Maximum dry suction lift ft (m): | ft (m) 15 (4.5) |
| Muffler: | Integral, Included |
Description
 |  |
GA05 1/2" Aluminum Diaphragm Pump
Accessories
A637140-XX Air Section Service Kit
A637141 Fluid Section Service Kit
Pump Casing Materials
Aluminum
Diaphragm Materials
Viton
PTFE w/ Santoprene backer
Hytrel
Santoprene
Nitrile
Neoprene
E.P.R.
